Introduction :

The vertical beam of RSV Series Robot is made of reinforced aluminum alloy. The vertical beam and take-out mechanism, are
equipped with linear ways. The cylinder components and oil seals are imported from Japan to achieve the goal of high precision, durability as well as reduction of maintenance cost.

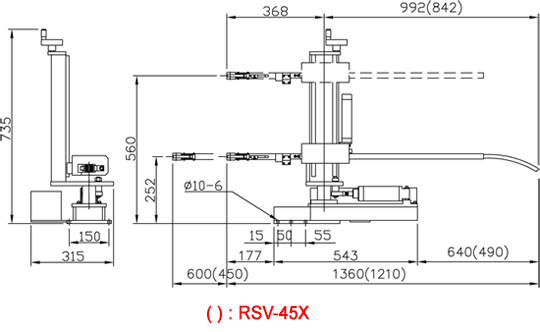

Standard Specifications

Model	RSV-45	RSV-45X	RSV-60	RSV-60X
Power Supply	AC 220V 50/60Hz ±10% 1A Max.
Air Pressure	3 ~9 kg/cm²
Vertical Stroke	100mm Max.		100mm Max.
Take-out Stroke	450mm Max.		600mm Max.
Swing Angle	-	70^o~90^o	-	70^o~90^o
Payload (kg)	1kg Max.
Chuck Inversion	180^o
Air Consumption (l / cycle)	7	11	10	14
Machine Weight (kg)	30.5	40	31	41
